LMK Alexander Amplifier

April 2022
StatusBuilt
Circuit familyAlexander / MOSFET
Photographs21 full-size gallery images
Downloads1 local design and reference files

Project Notes

An Alexander-derived front end with a folded-cascode VAS, built on the modular MOSFET output-stage platform. Hardware, test images, PCB files and simulation variants are included.

diyAudio discussion

Photo Gallery

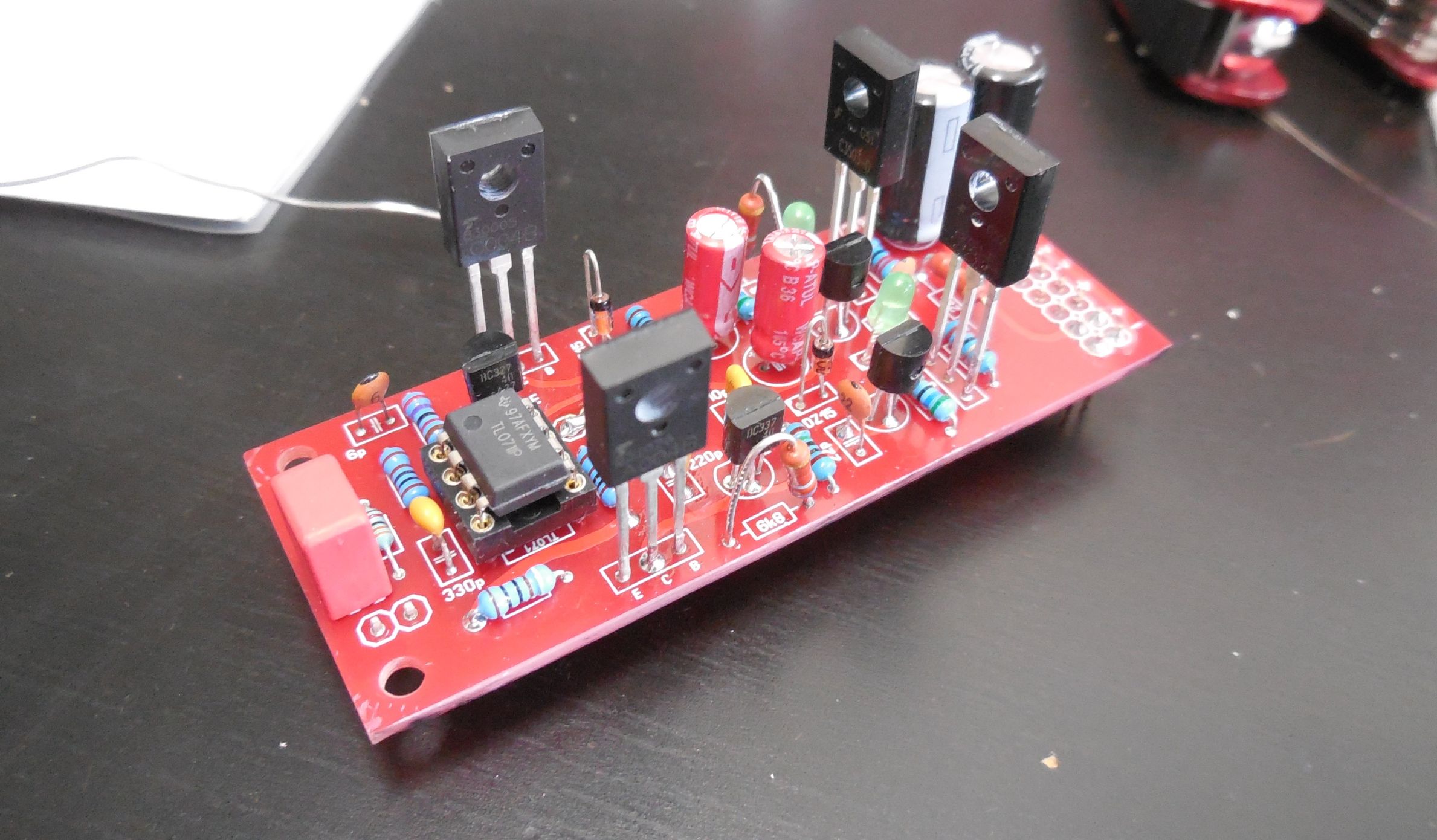

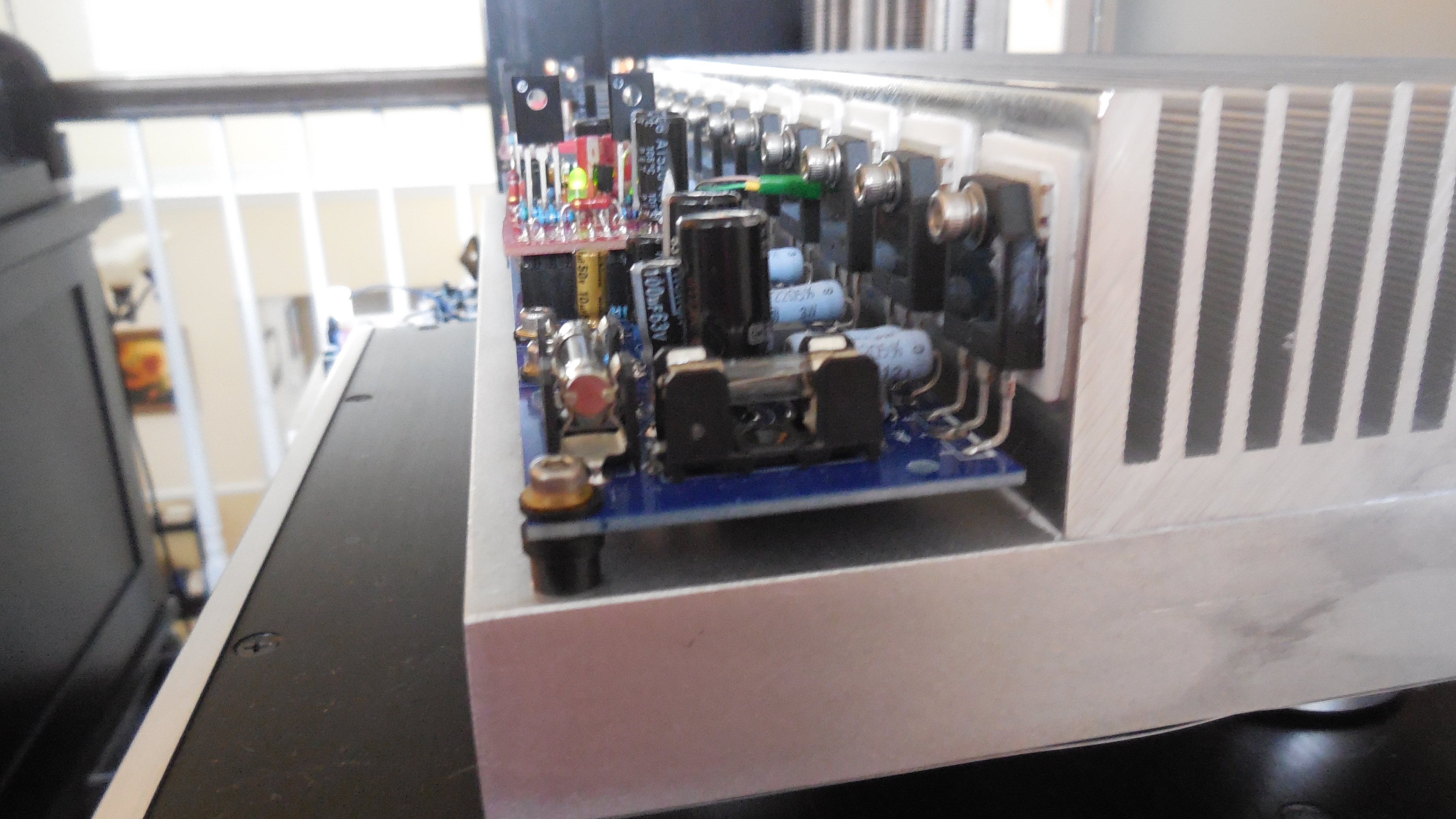

Dscn0716

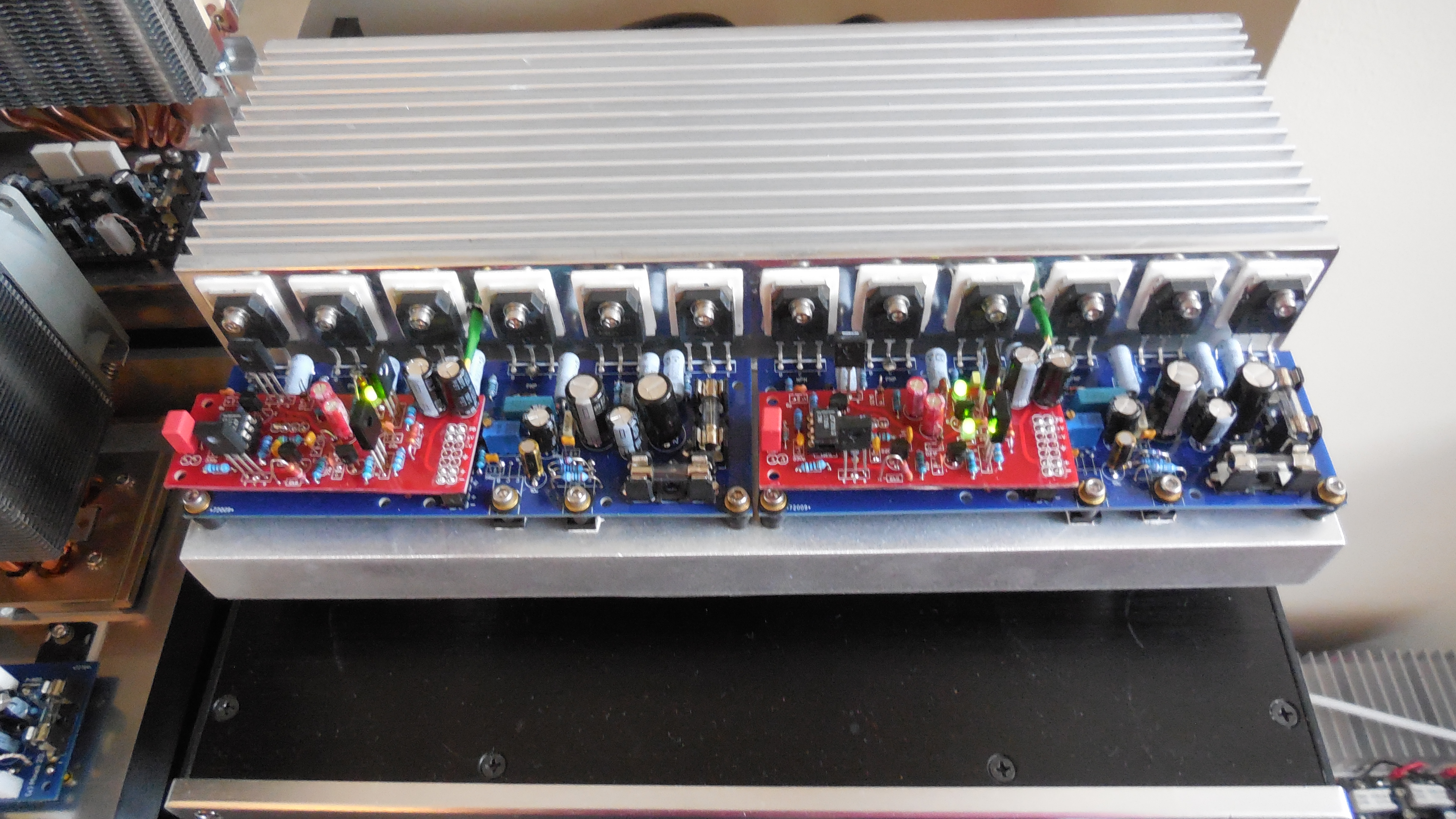

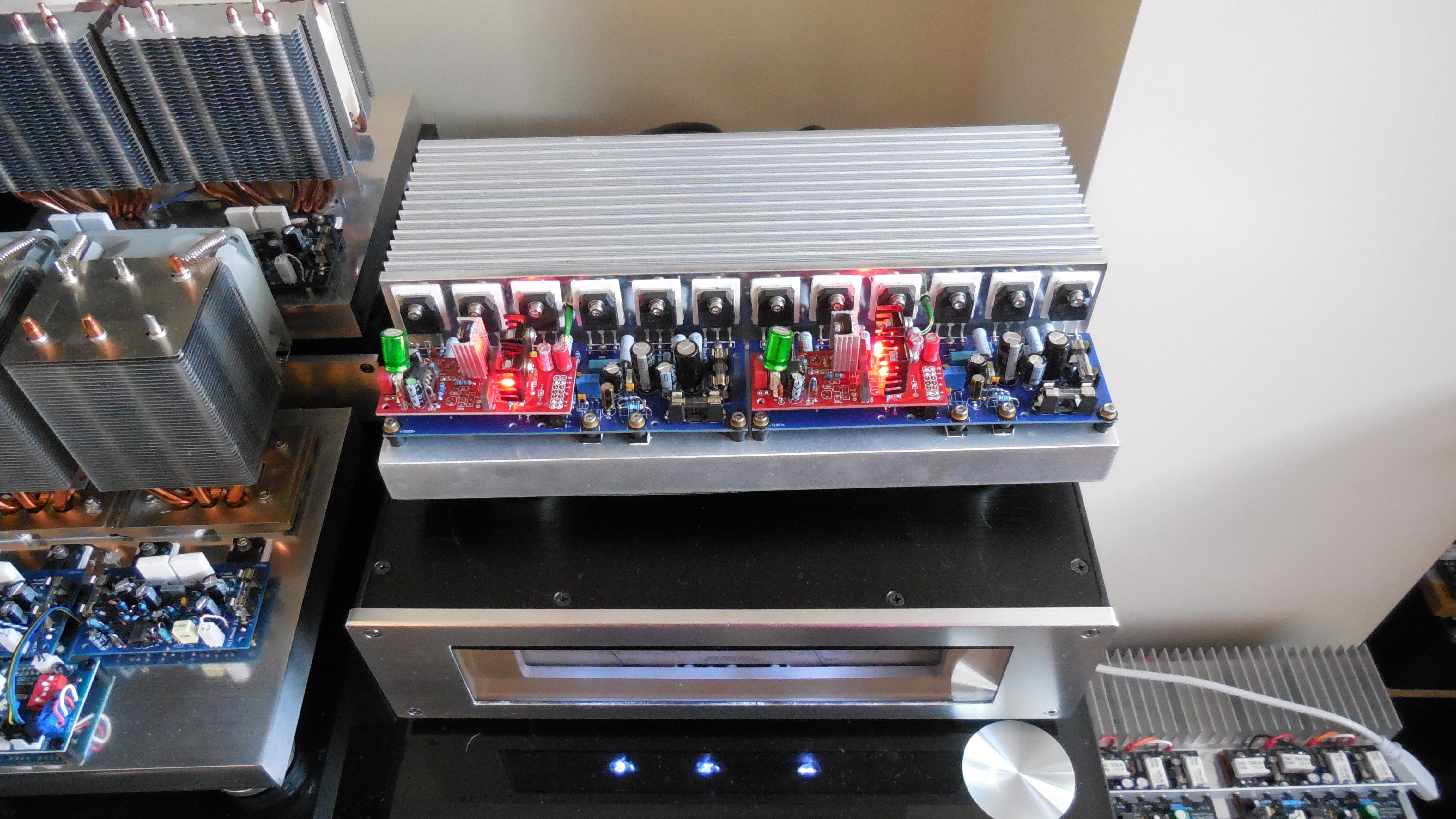

1. Dscn0716 		DSCN0724
2. DSCN0724 		DSCN0726
3. DSCN0726 		DSCN0728
4. DSCN0728

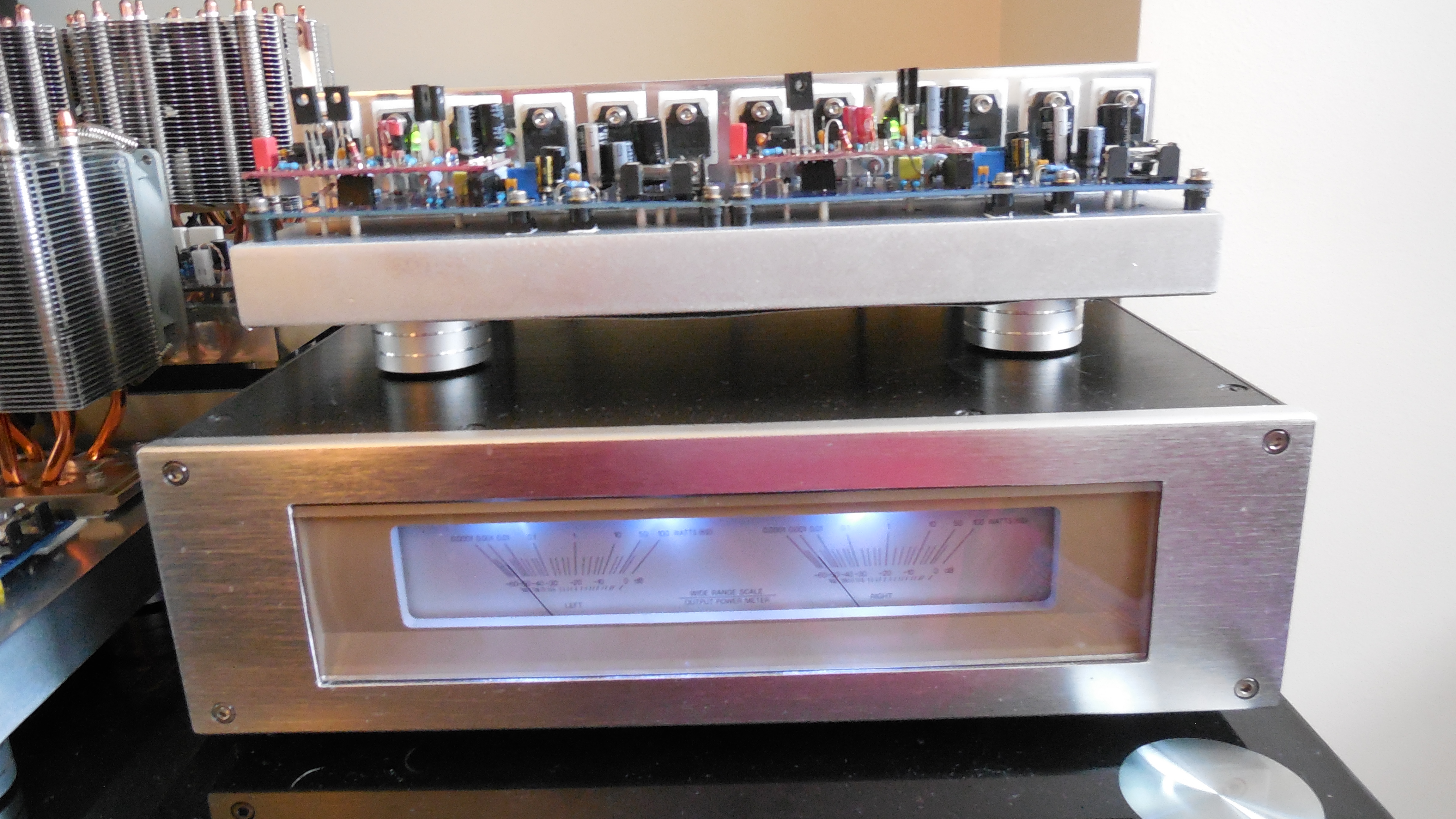

DSCN0730

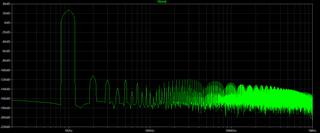

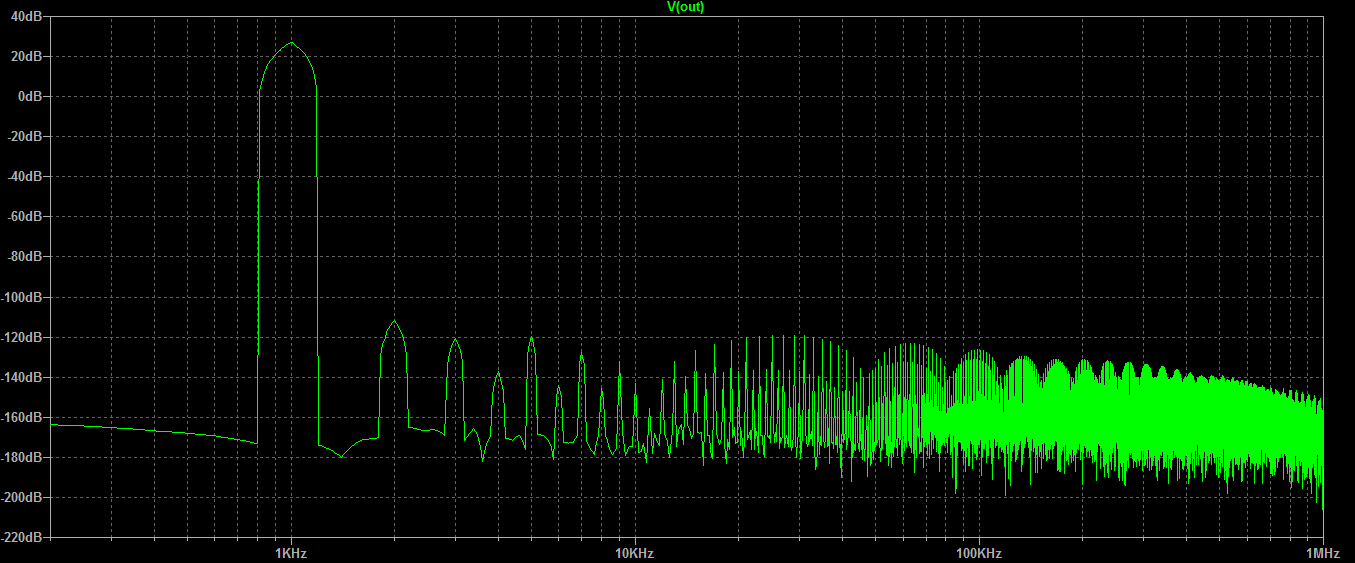

5. DSCN0730 		fft 1kHz

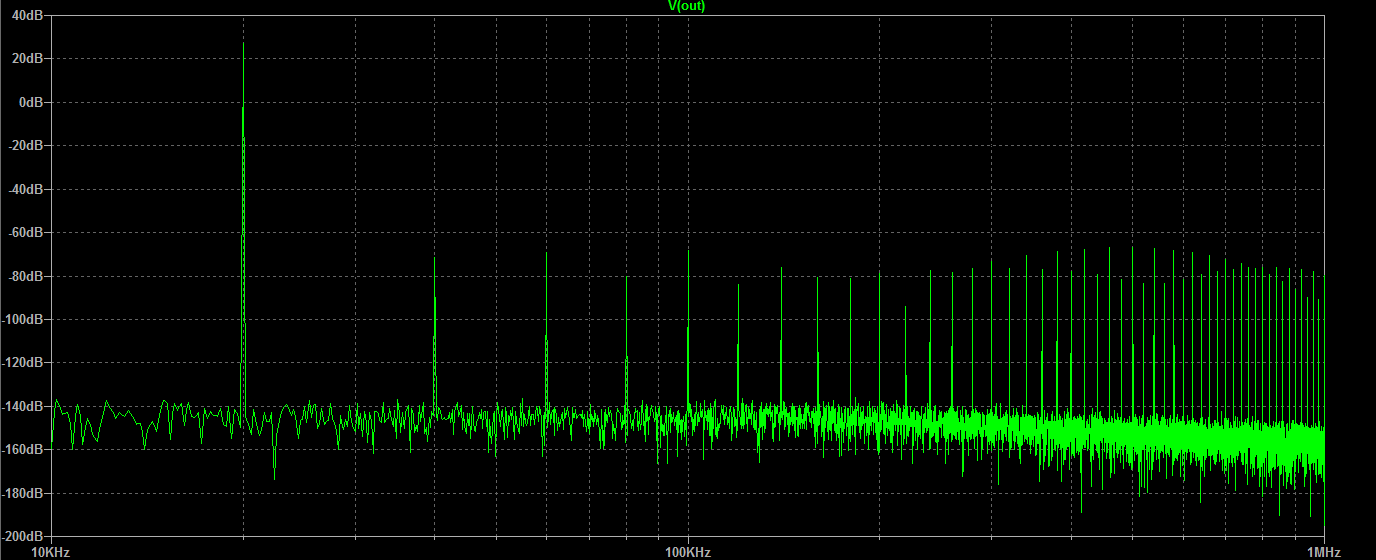

6. fft 1kHz 		fft 20kHz

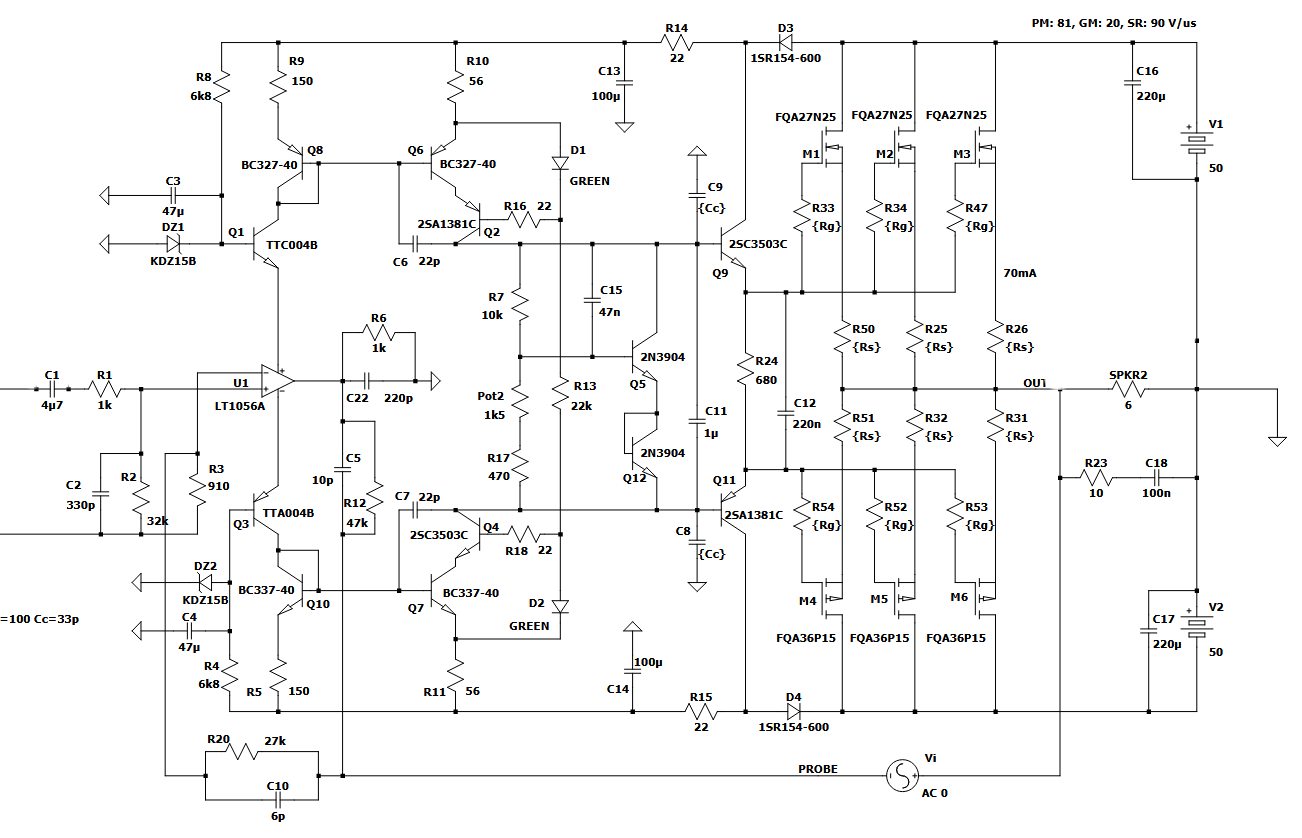

7. fft 20kHz 		symmetrikal.alx hawk
8. symmetrikal.alx hawk

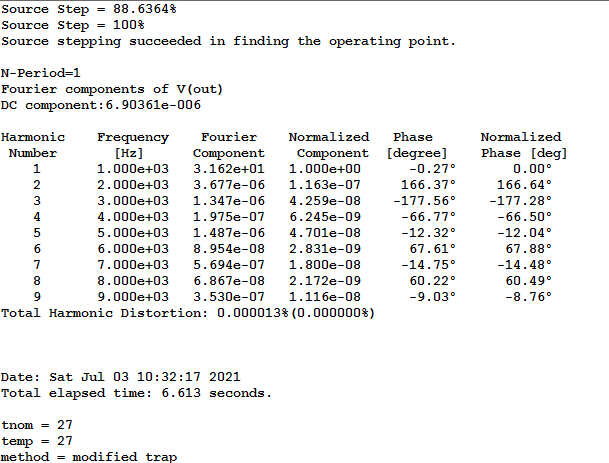

thd 1kHz

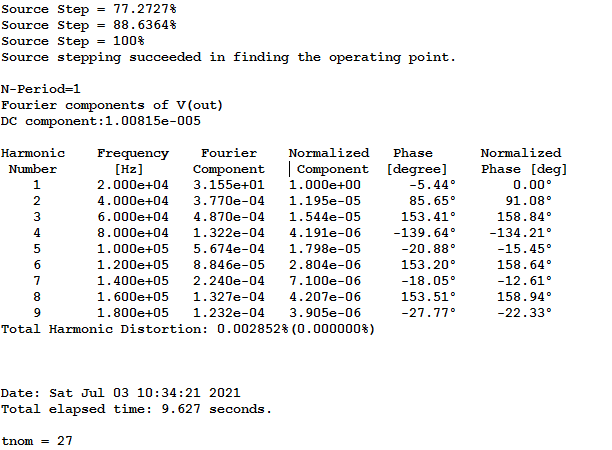

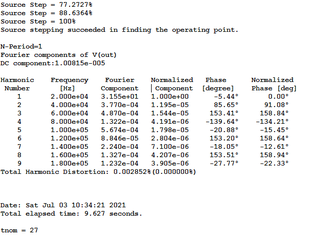

9. thd 1kHz 		thd 20kHz

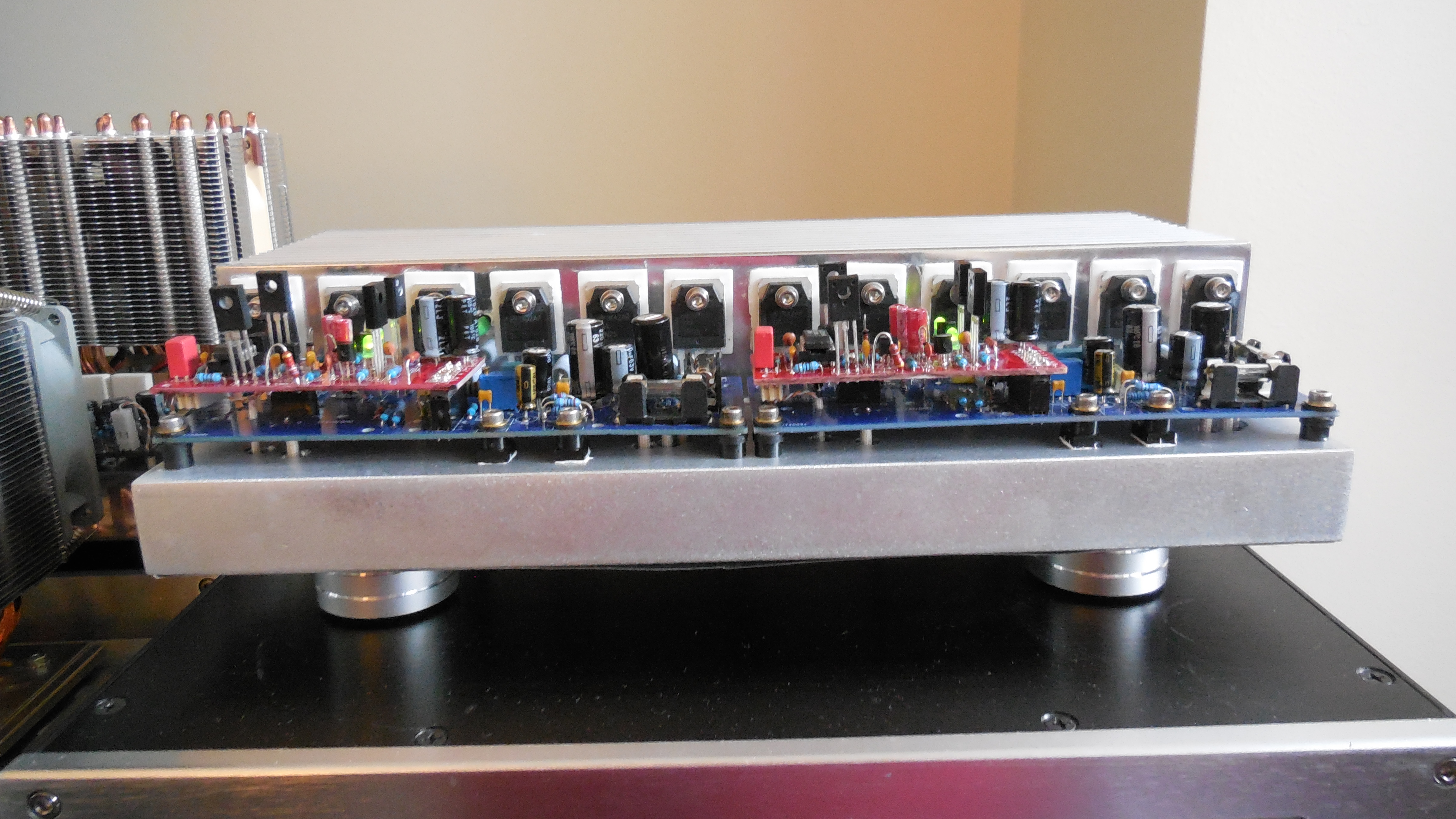

10. thd 20kHz 		DSCN0729
11. DSCN0729 		DSCN0727

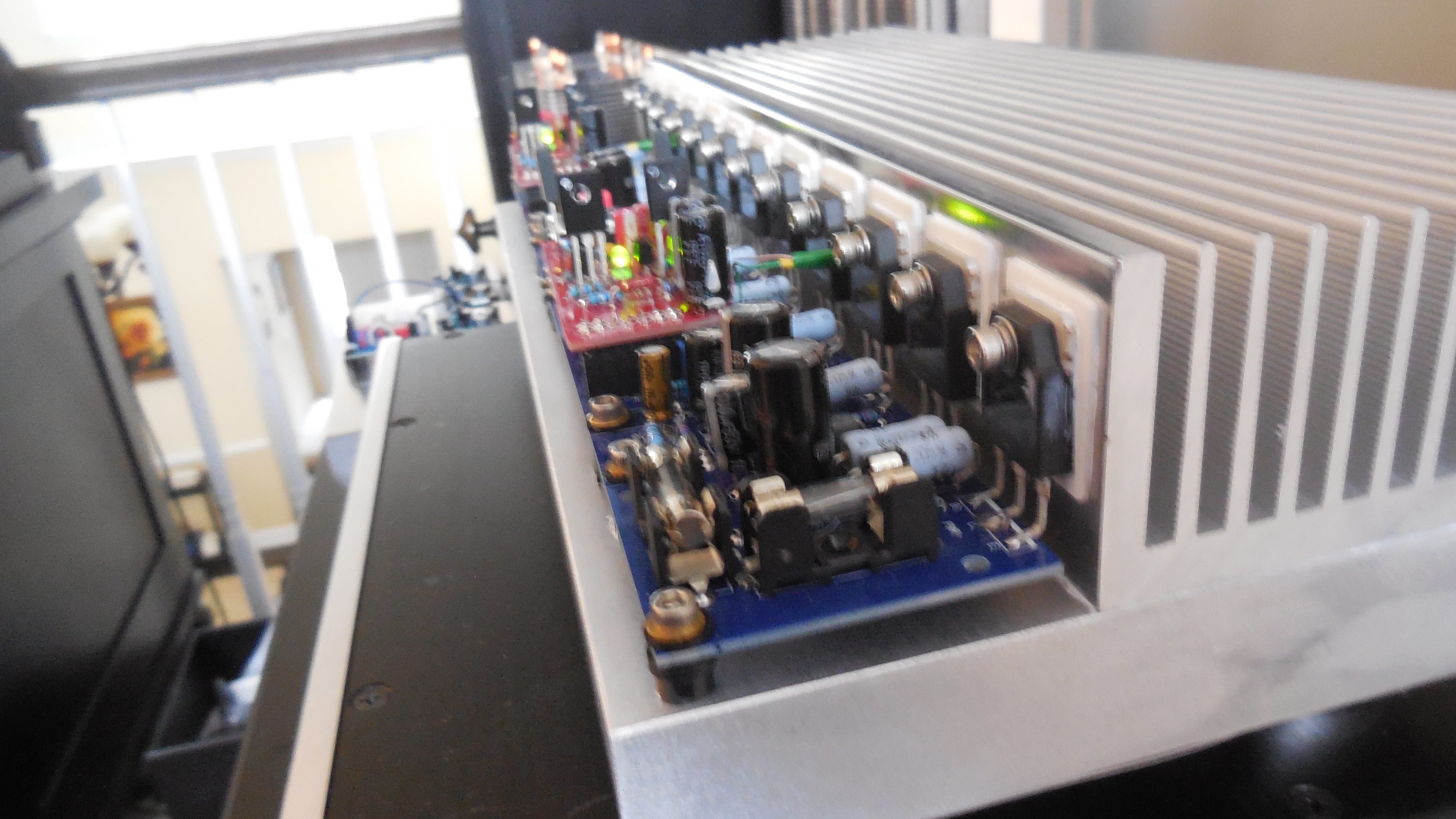

12. DSCN0727

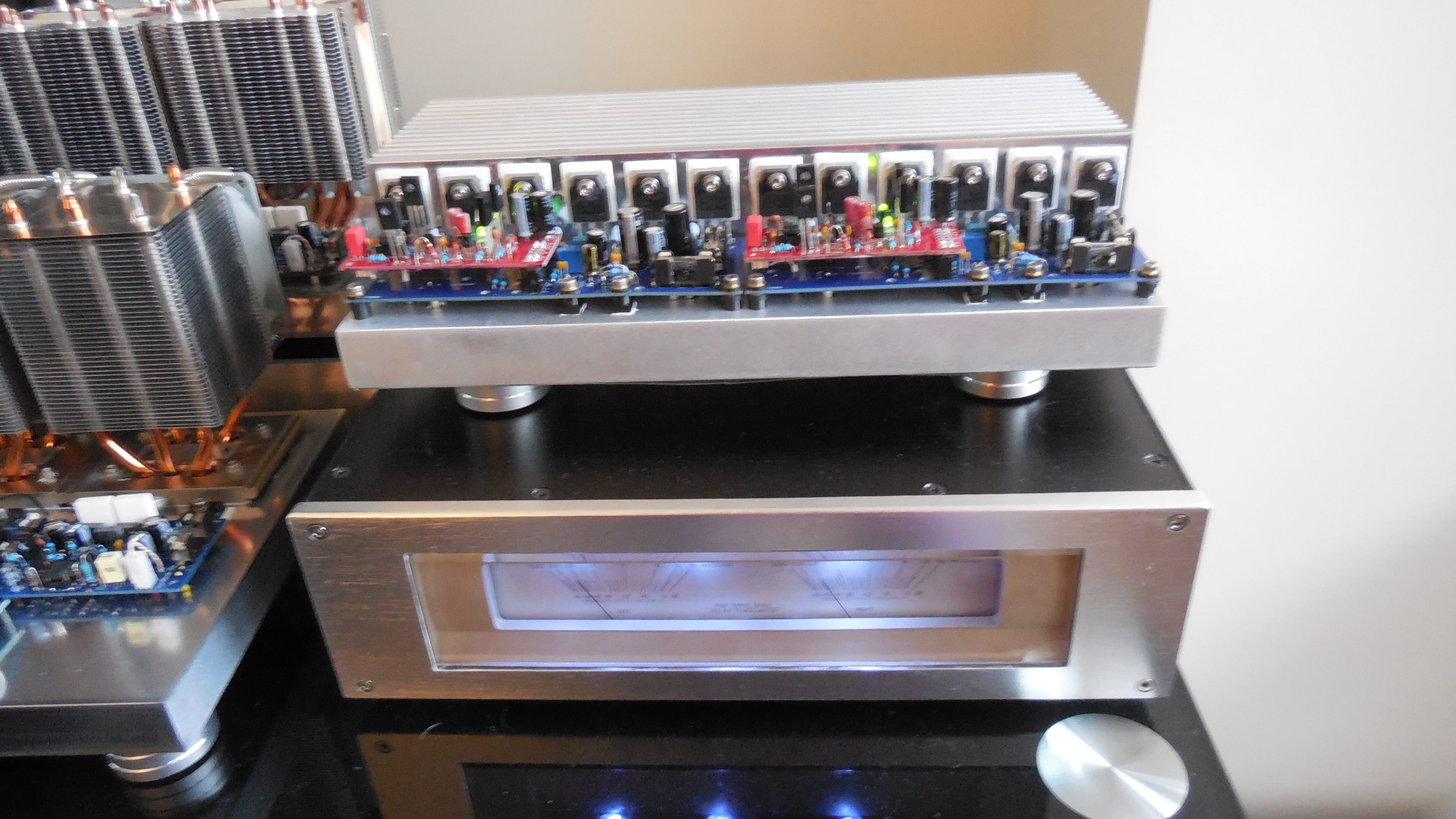

DSCN0725
13. DSCN0725 		DSCN0723

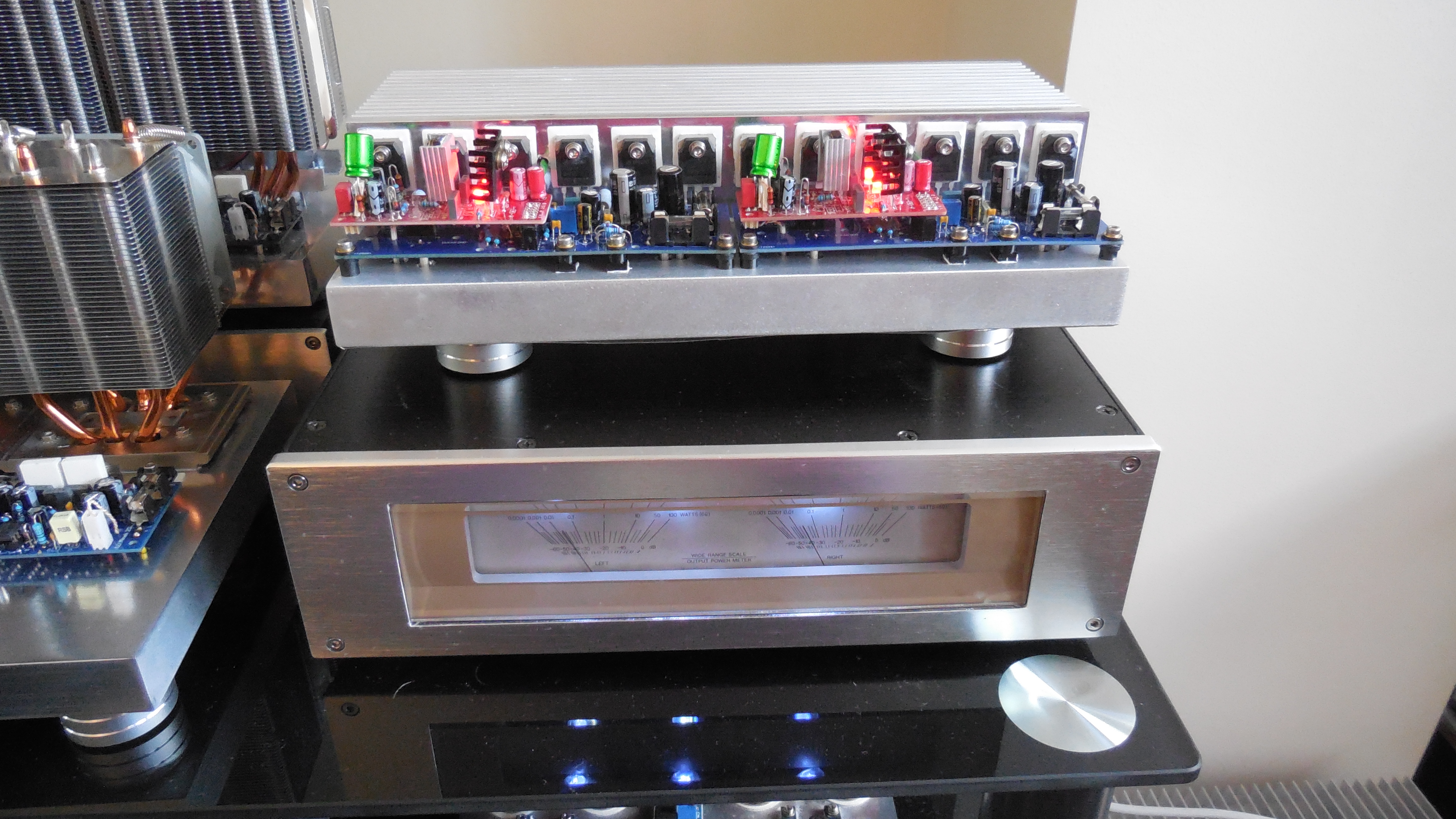

14. DSCN0723 		DSCN0722

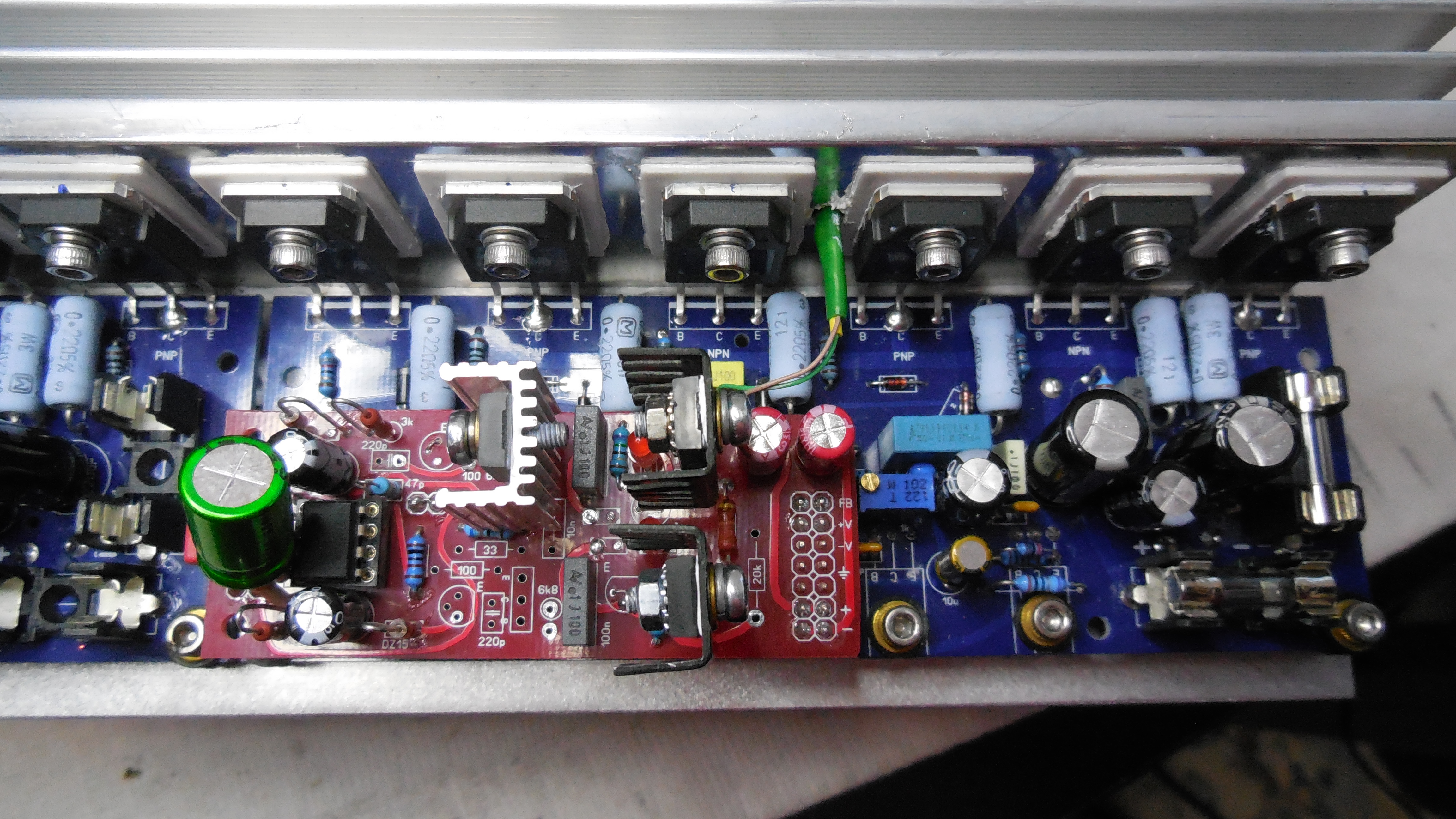

15. DSCN0722 		DSCN0721
16. DSCN0721

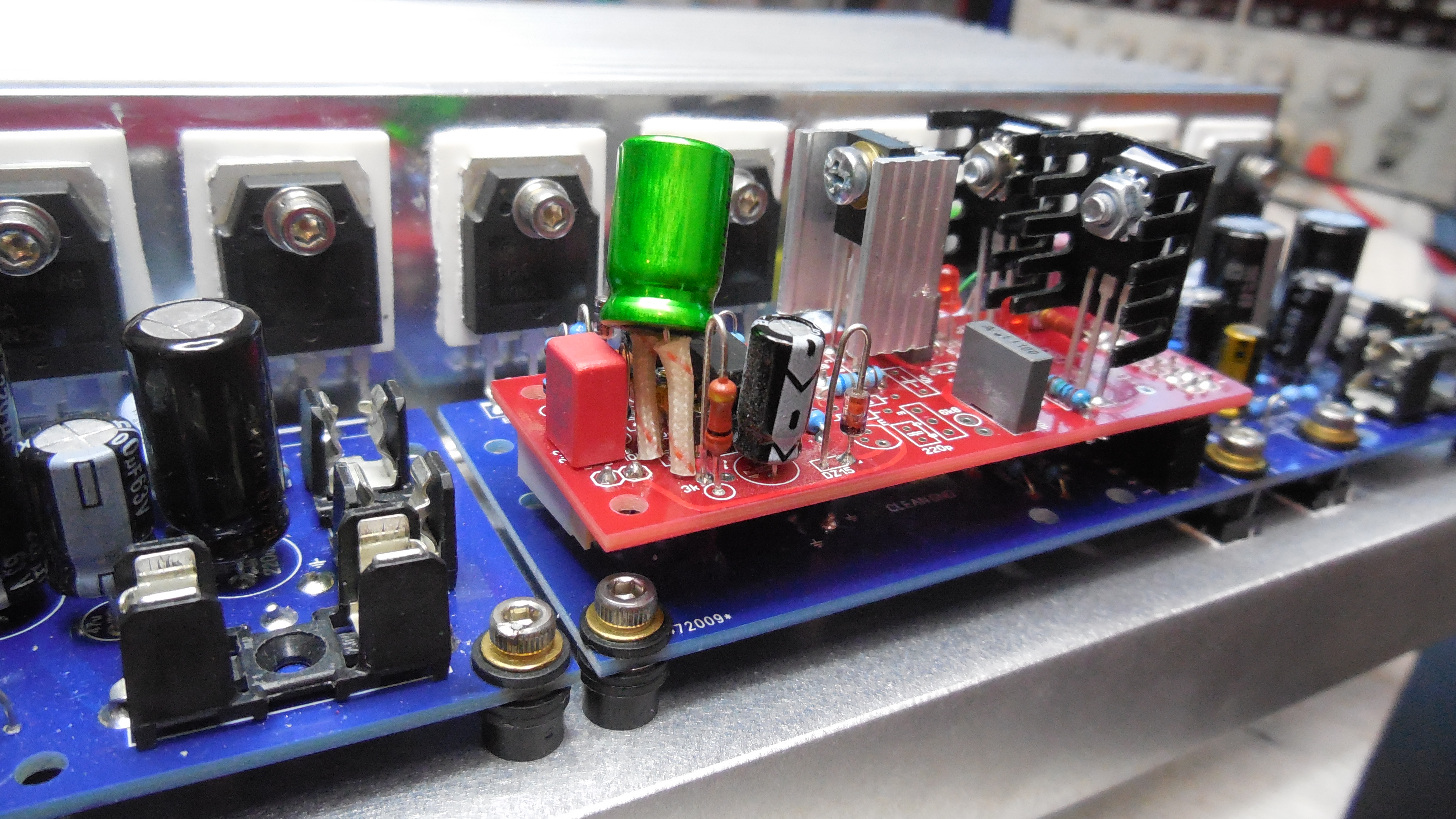

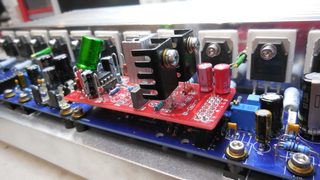

DSCN0720

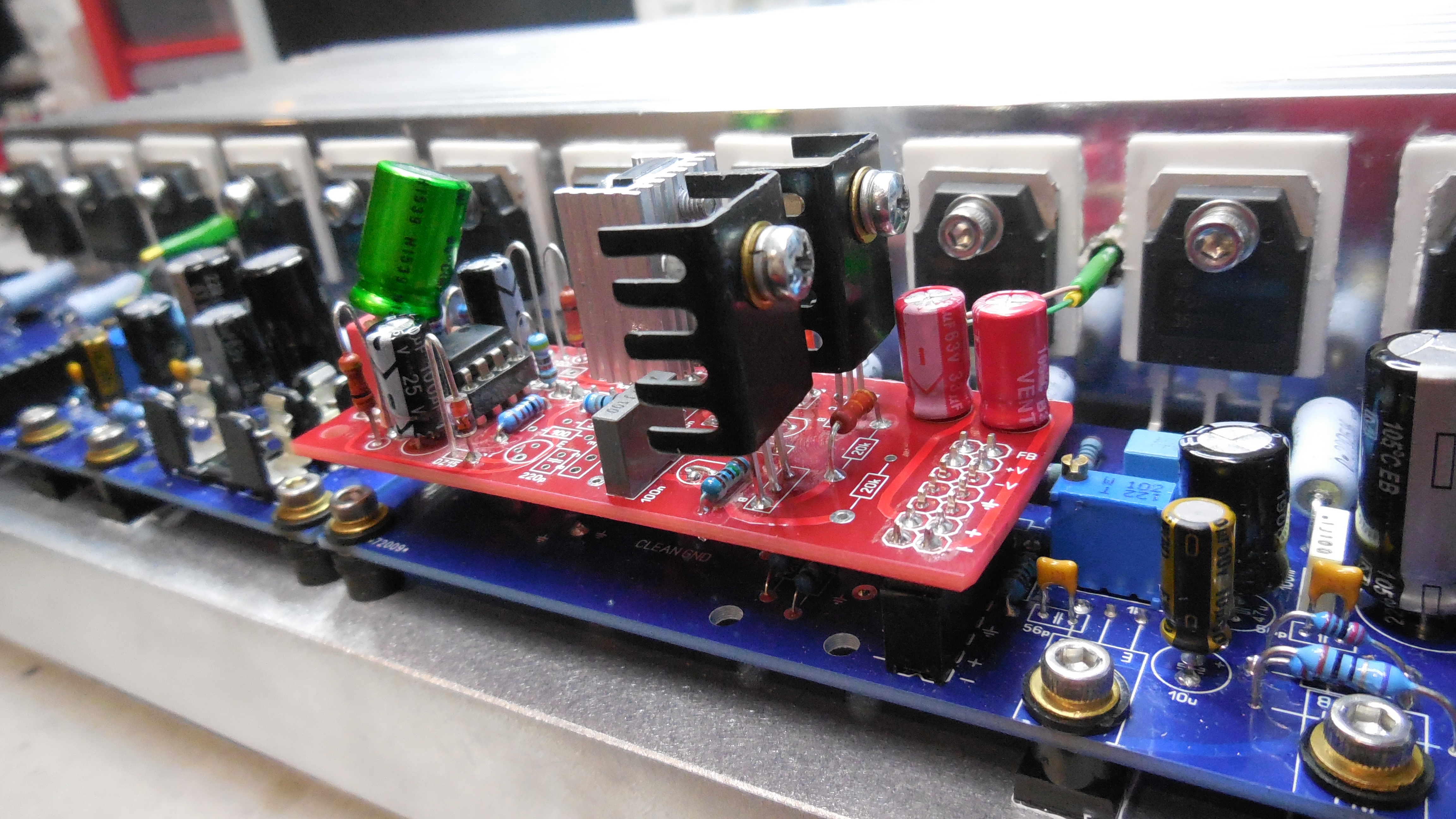

17. DSCN0720 		DSCN0719

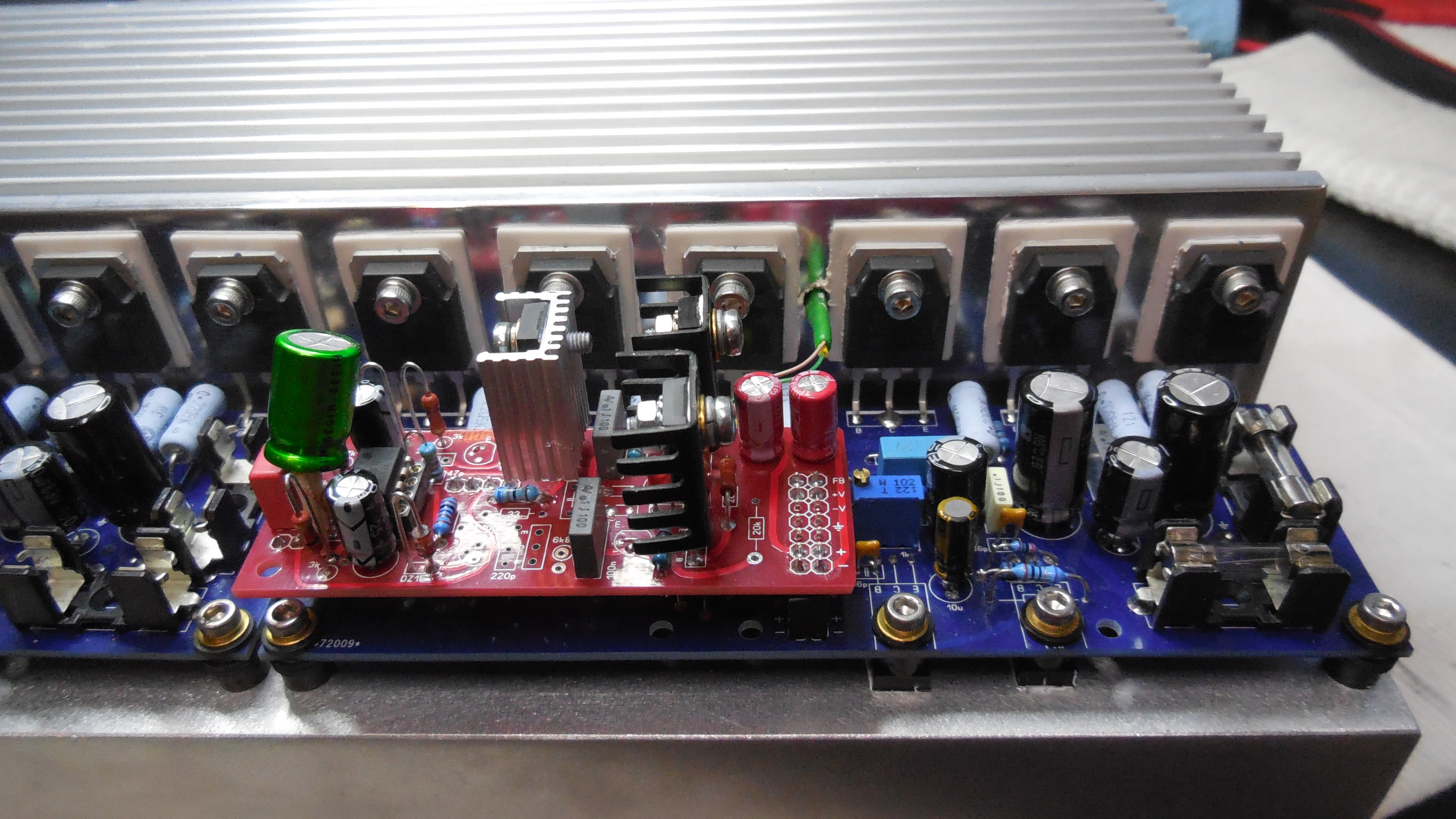

18. DSCN0719 		DSCN0718

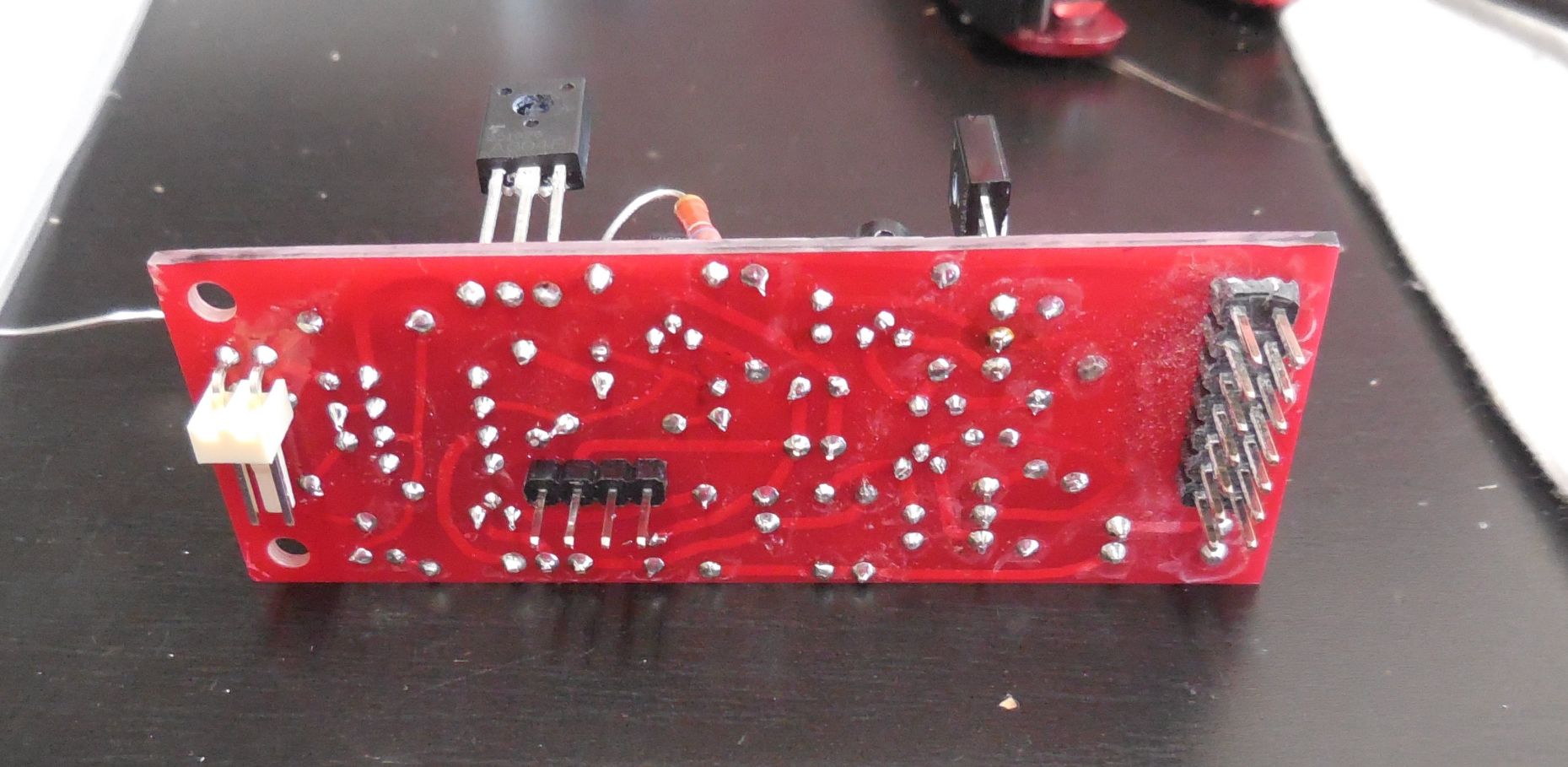

19. DSCN0718 		Dscn0717
20. Dscn0717

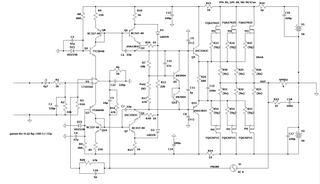

symmetrikal.alx hawk

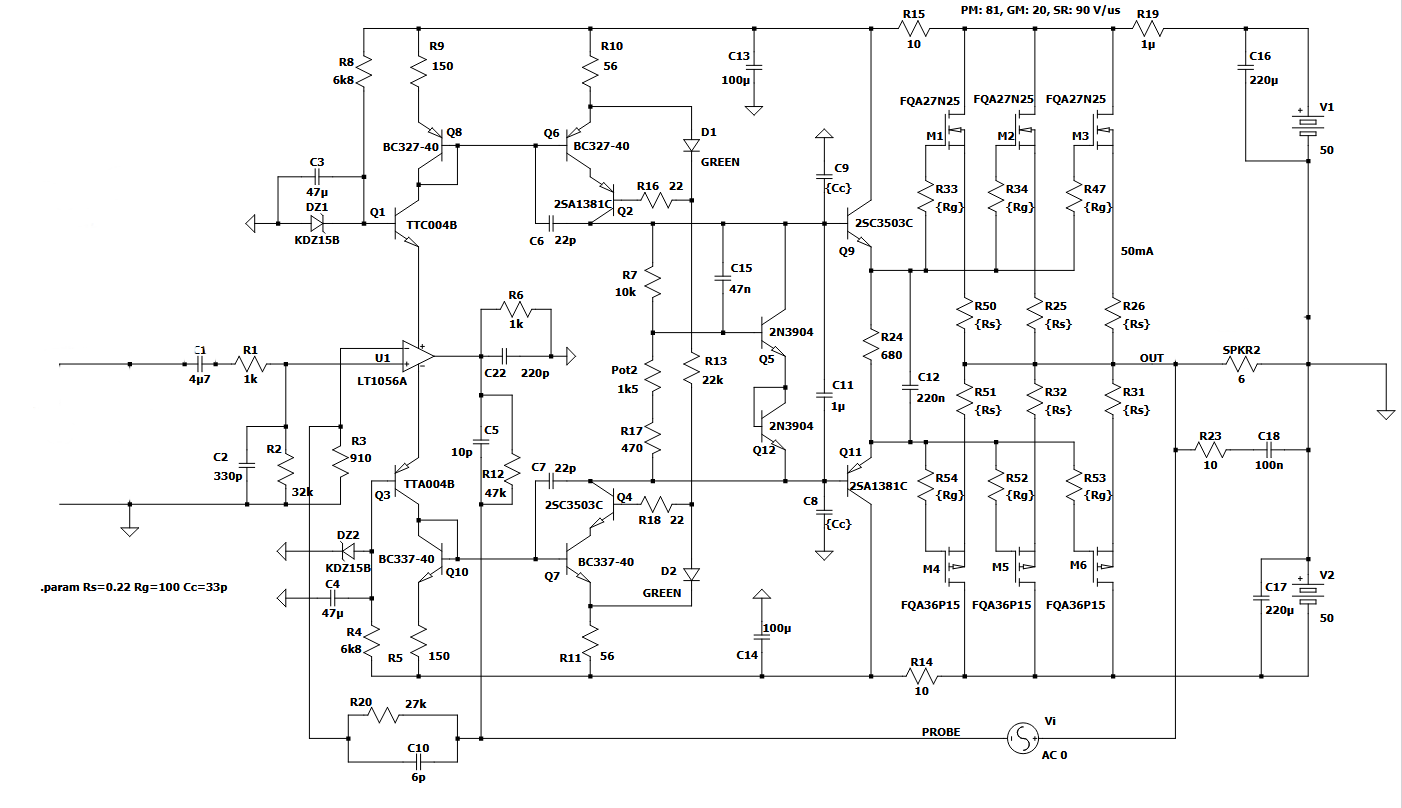

21. symmetrikal.alx hawk
